Laser Series
TruPulse
The TruPulse® series offers capacities ranging beyond the mere measurement distances.
Unlike some alternative methods and tools ineffective, these laser rangefinders are used to perform field surveys freely.
- All TruPulse models can measure distances, heights and inclinations.
- The model calculates 360 plus azimuth values and measures between two distant points.
- The model R 360 offers all the features available, in addition to being rugged and water resistant.
Readings and measurement data can be automatically downloaded via a serial port or a Bluetooth communication device, facilitating the integration of software and GPS solutions. There simply is no other instrument in the world that can equal the value of the TruPulse laser rangefinder regarding its size, its price and its overall functionality.
Description
TruPulse 200
The standard version of this laser range finder includes a serial port, provides a data display screen with an optical system for a 7x magnification and is powered by two AA batteries. It measures the horizontal distance, vertical and slopes, slopes and heights, in addition to providing a measurement program of the height in three points.
TruPulse 200B
TruPulse 200B model offers the same features as the standard model 200, in addition to having the capacity to Bluetooth® wireless data collection.
TruPulse 200X
The additional protection and waterproof housing with an illuminated LED and adjustable control panel makes it ideal 200X model for taking accurate measurements under difficult conditions.
TruPulse 360
The standard version of this laser range finder includes a serial port, provides a data display screen with an optical system for a 7x magnification and is powered by two AA batteries. It measures horizontal distances and vertical slopes, inclinations, heights, the azimuth values and the missing lines, in addition to programs for measuring the height at three points and the calculation of the line missing two shots.
TruPulse 360B
The laser rangefinder TruPulse 360B offers the same features as the standard model 360, in addition to having the capacity to Bluetooth® wireless data collection.

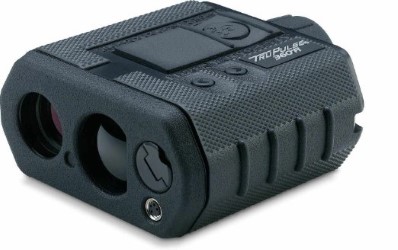

TruPulse 360R
This laser rangefinder provides all the power and the same functions as the 360B model including Bluetooth® capabilities for collecting wireless data, and in addition has a rugged and water resistant. It measures horizontal distances and vertical slopes, inclinations, heights, the azimuth values and the missing lines, in addition to programs for measuring the height at three points and the calculation of the line missing two shots.
| Characteristics |  |
 |
 |
| Model | TruPulse 200L | TruPulse 200 / B | TruPulse 200X |
| Measuring the azimuth by TruVector Compass Technology | No. | No. | No. |
| Calculation of SD, HD, and VD INC between two points |
Yes | Yes | Yes |
| Accuracy of the typical target | +/- 1 m (3 ft) | +/- 30 cm (1 ft) | +/- 4 cm (1.5 in) |
| Azimuthal accuracy | – | – | – |
| Precision inclinometer | +/- 0.5 ° relative | +/- 0.25 ° typical | +/- 0.1 ° typical |
| Maximum focused on reflective target | 1750m | 2000 m | 2500 m |
| Maximum focused on non-reflective target | 1750m | 1000 m | 1900m |
| RS232 Com Port | No | Yes | Yes |
| Bluetooth Com Port | No | Model B | Yes (compatible iOS) |
| Optical Zoom / Display Type | 4X / LCD | 7X / LCD | 7X / LED |
| Sight in view | 131 m to 915 m | 100 m to 915 m | 100 m to 915 m |
| Waterproof / Environment | No / IP54 | No / IP54 | Yes / IP56 |
| Temperature | -20 ° to 60 ° C | -20 ° to 60 ° C | -20 ° to 60 ° C |
| Battery Type (8h continuous) | (1) CR123A | (2) AA or (1) CRV3 | (1) CR123A |
| Size | 11.5 x 10 x 5 cm | 12 x 5 x 9 cm | 13 x 5 x 11 cm |
| Weight | 220 g | 285 g | 382 g |
| Color | LTI Red | Yellow / Grey | LTI Red |
| Characteristics |  |
 |
| Model | TruPulse 360 / B | TruPulse 360 R |
| Measuring the azimuth by TruVector Compass Technology | Yes | Yes |
| Calculation of SD, HD, and VD INC between two points |
Yes, more AZ | Yes, more AZ |
| Accuracy of the typical target | +/- 30 cm | +/- 30 cm |
| Precision inclinometer | +/- 0.25 ° typical | +/- 0.25 ° typical |
| Azimuthal accuracy | +/- 1 ° typical | +/- 1 ° typical |
| Maximum focused on reflective target | 2000 m | 2000 m |
| Maximum focused on non-reflective target | 1000 m | 1000 m |
| RS232 Com Port | Yes | Yes |
| Bluetooth Com Port | Model B | Yes |
| Optical Zoom / Display Type | 7X / LCD | 7X / LCD |
| Sight in view | 100 m to 915 m | 100 m to 915 m |
| Waterproof / Environment | No / IP54 | Yes / IP56 |
| Temperature | -20 ° to 60 ° C | -20 ° to 60 ° C |
| Battery Type (8h continuous) | (2) AA or (1) CRV3 | (1) CR123A |
| Size | 12 x 5 x 9 cm | 13 x 5 x 11 cm |
| Weight | 285 g | 385 g |
| Color | Yellow / Grey | Black |
Features
- Distance
- Height
- Azimuth
- Percent Slope 2D
- 3D missing line
- Laser Mapping
- Remote Positioning
- Offset laser from a GPS position
- Increased efficiency on the ground
